Header file for the various classes representing constants, references, and dynamic expressions in cQASM. More...

Classes
class	cqasm::v1::values::Visitor< T >
	Base class for the visitor pattern for the tree. More...

class	cqasm::v1::values::Node
	Main class for all nodes. More...

class	cqasm::v1::values::Reference
	Represents a reference to some storage location. More...

class	cqasm::v1::values::BitRefs
	Represents a measurement bit, or a number of measurement bits for conditional gates with multiple conditions. More...

class	cqasm::v1::values::Constant
	Represents a constant value. More...

class	cqasm::v1::values::ConstAxis
	Represents an axis value (x, y, or z). More...

class	cqasm::v1::values::ConstBool
	Represents a value of type bool. More...

class	cqasm::v1::values::ConstComplex
	Represents a value of type complex. More...

class	cqasm::v1::values::ConstComplexMatrix
	Represents a value of type complex_matrix. More...

class	cqasm::v1::values::ConstInt
	Represents a value of type int. More...

class	cqasm::v1::values::ConstJson
	Represents a value of type json. More...

class	cqasm::v1::values::ConstReal
	Represents a value of type real. More...

class	cqasm::v1::values::ConstRealMatrix
	Represents a value of type real_matrix. More...

class	cqasm::v1::values::ConstString
	Represents a value of type string. More...

class	cqasm::v1::values::Function
	This can be returned by user-defined functions as a placeholder value for something that needs to be evaluated at runtime rather than during constant propagation. More...

class	cqasm::v1::values::QubitRefs
	Represents a qubit, or a set of qubits for single-gate-multiple-qubit notation. More...

class	cqasm::v1::values::VariableRef
	Represents a variable reference. More...

class	cqasm::v1::values::VisitorBase
	Internal class for implementing the visitor pattern. More...

class	cqasm::v1::values::Visitor< T >
	Base class for the visitor pattern for the tree. More...

class	cqasm::v1::values::RecursiveVisitor
	Visitor base class defaulting to DFS pre-order traversal. More...

class	cqasm::v1::values::Dumper
	Visitor class that debug-dumps a tree to a stream. More...

Namespaces
	cqasm
	Toplevel namespace with entry points for the new API.

	cqasm::v1
	Namespace for the "new" cQASM 1.x API.

	cqasm::v1::values
	Namespace for the classes representing the values (including dynamically evaluated expressions or references to registers) available within cQASM.

Typedefs
using	cqasm::v1::values::Base = cqasm::tree::Base

template<class T >
using	cqasm::v1::values::Maybe = cqasm::tree::Maybe< T >

template<class T >
using	cqasm::v1::values::One = cqasm::tree::One< T >

template<class T >
using	cqasm::v1::values::Any = cqasm::tree::Any< T >

template<class T >
using	cqasm::v1::values::Many = cqasm::tree::Many< T >

template<class T >
using	cqasm::v1::values::OptLink = cqasm::tree::OptLink< T >

template<class T >
using	cqasm::v1::values::Link = cqasm::tree::Link< T >

Enumerations
enum	cqasm::v1::values::NodeType { cqasm::v1::values::NodeType::BitRefs, cqasm::v1::values::NodeType::ConstAxis, cqasm::v1::values::NodeType::ConstBool, cqasm::v1::values::NodeType::ConstComplex, cqasm::v1::values::NodeType::ConstComplexMatrix, cqasm::v1::values::NodeType::ConstInt, cqasm::v1::values::NodeType::ConstJson, cqasm::v1::values::NodeType::ConstReal, cqasm::v1::values::NodeType::ConstRealMatrix, cqasm::v1::values::NodeType::ConstString, cqasm::v1::values::NodeType::Function, cqasm::v1::values::NodeType::QubitRefs, cqasm::v1::values::NodeType::VariableRef }
	Enumeration of all node types. More...

Functions
std::ostream &	cqasm::v1::values::operator<< (std::ostream &os, const Node &object)
	Stream << overload for tree nodes (writes debug dump). More...

Detailed Description

Header file for the various classes representing constants, references, and dynamic expressions in cQASM.

Definition in file cqasm-v1-values-gen.hpp.

#include <iostream>
#include "cqasm-tree.hpp"
#include "cqasm-v1-primitives.hpp"
#include "cqasm-v1-types.hpp"

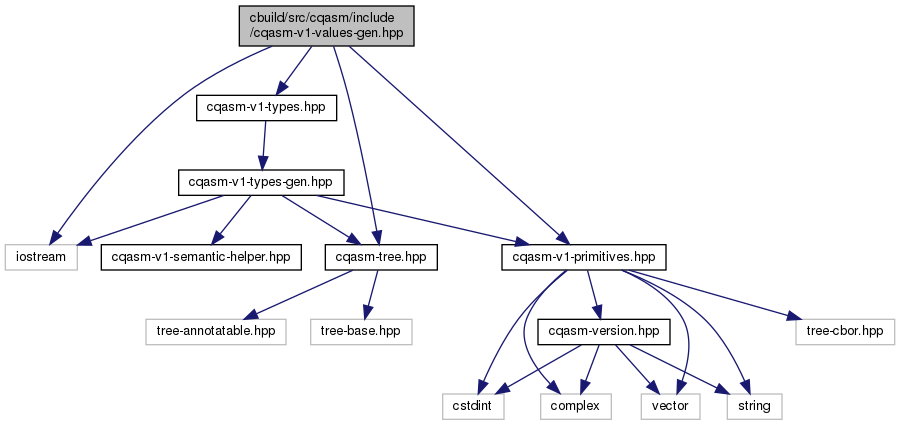

Include dependency graph for cqasm-v1-values-gen.hpp:

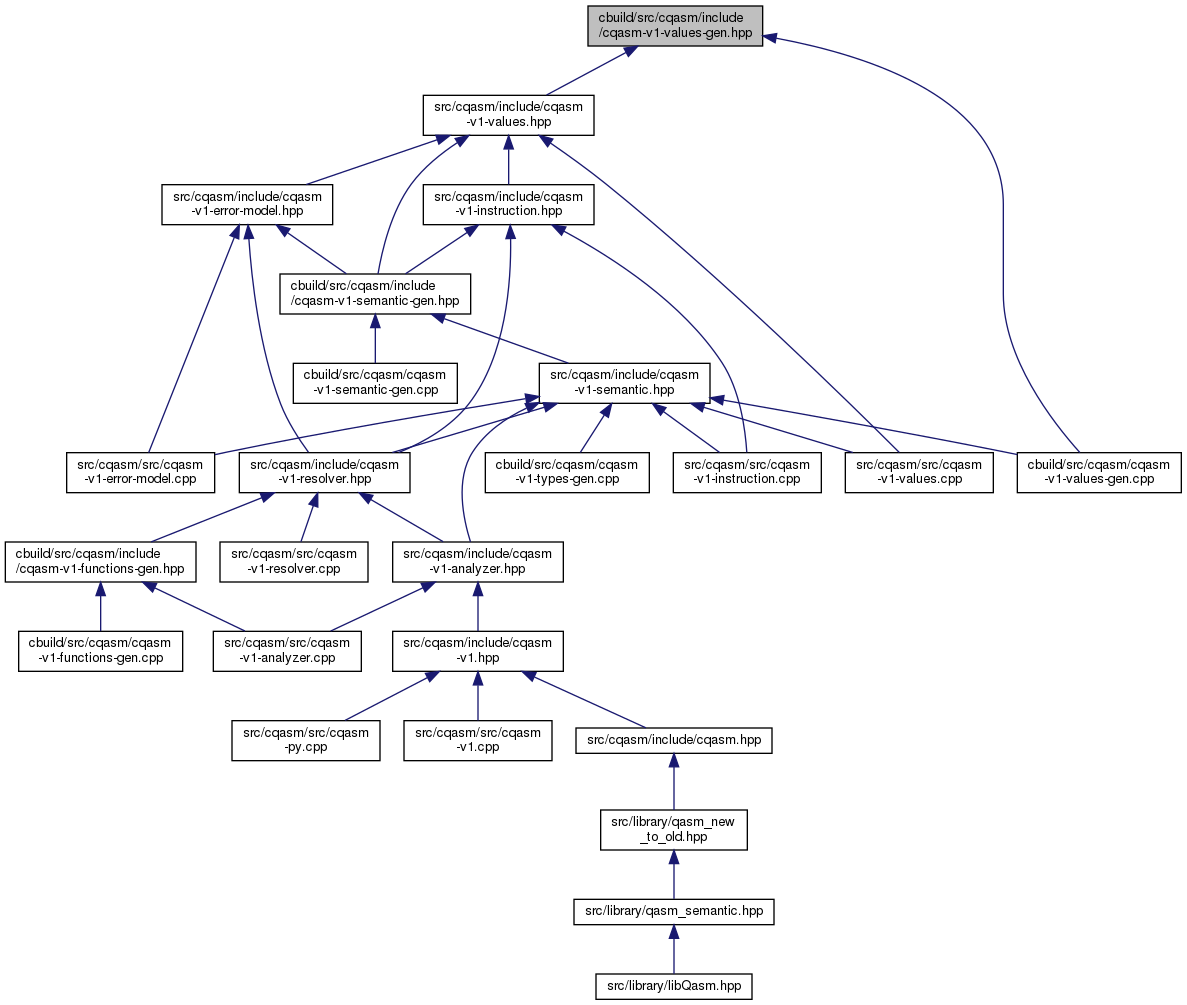

This graph shows which files directly or indirectly include this file:
