Header file for the various classes representing the types of values available in cQASM. More...

Classes
class	cqasm::v1::types::Visitor< T >
	Base class for the visitor pattern for the tree. More...

class	cqasm::v1::types::Node
	Main class for all nodes. More...

class	cqasm::v1::types::TypeBase
	Base for all types, with a member indicating whether values of this type are assignable (references) or not (constants, expression results). More...

class	cqasm::v1::types::Axis
	Type of an axis (x, y, or z). More...

class	cqasm::v1::types::Bool
	Type of a boolean/bit. More...

class	cqasm::v1::types::Complex
	Type of a complex number (2x IEEE double). More...

class	cqasm::v1::types::ComplexMatrix
	Type of a complex matrix. More...

class	cqasm::v1::types::Int
	Type of an integer (signed 64-bit). More...

class	cqasm::v1::types::Json
	Type of a JSON string. More...

class	cqasm::v1::types::Qubit
	Type of one or more qubit references. More...

class	cqasm::v1::types::Real
	Type of a real number (IEEE double). More...

class	cqasm::v1::types::RealMatrix
	Type of a real matrix. More...

class	cqasm::v1::types::String
	Type of an arbitrary string. More...

class	cqasm::v1::types::VisitorBase
	Internal class for implementing the visitor pattern. More...

class	cqasm::v1::types::Visitor< T >
	Base class for the visitor pattern for the tree. More...

class	cqasm::v1::types::RecursiveVisitor
	Visitor base class defaulting to DFS pre-order traversal. More...

class	cqasm::v1::types::Dumper
	Visitor class that debug-dumps a tree to a stream. More...

Namespaces
	cqasm
	Toplevel namespace with entry points for the new API.

	cqasm::v1
	Namespace for the "new" cQASM 1.x API.

	cqasm::v1::types
	Namespace for the classes representing the types available within cQASM.

Typedefs
using	cqasm::v1::types::Base = cqasm::tree::Base

template<class T >
using	cqasm::v1::types::Maybe = cqasm::tree::Maybe< T >

template<class T >
using	cqasm::v1::types::One = cqasm::tree::One< T >

template<class T >
using	cqasm::v1::types::Any = cqasm::tree::Any< T >

template<class T >
using	cqasm::v1::types::Many = cqasm::tree::Many< T >

template<class T >
using	cqasm::v1::types::OptLink = cqasm::tree::OptLink< T >

template<class T >
using	cqasm::v1::types::Link = cqasm::tree::Link< T >

Enumerations
enum	cqasm::v1::types::NodeType { cqasm::v1::types::NodeType::Axis, cqasm::v1::types::NodeType::Bool, cqasm::v1::types::NodeType::Complex, cqasm::v1::types::NodeType::ComplexMatrix, cqasm::v1::types::NodeType::Int, cqasm::v1::types::NodeType::Json, cqasm::v1::types::NodeType::Qubit, cqasm::v1::types::NodeType::Real, cqasm::v1::types::NodeType::RealMatrix, cqasm::v1::types::NodeType::String }
	Enumeration of all node types. More...

Functions
std::ostream &	cqasm::v1::types::operator<< (std::ostream &os, const Node &object)
	Stream << overload for tree nodes (writes debug dump). More...

Detailed Description

Header file for the various classes representing the types of values available in cQASM.

#include <iostream>
#include "cqasm-tree.hpp"
#include "cqasm-v1-primitives.hpp"
#include "cqasm-v1-semantic-helper.hpp"

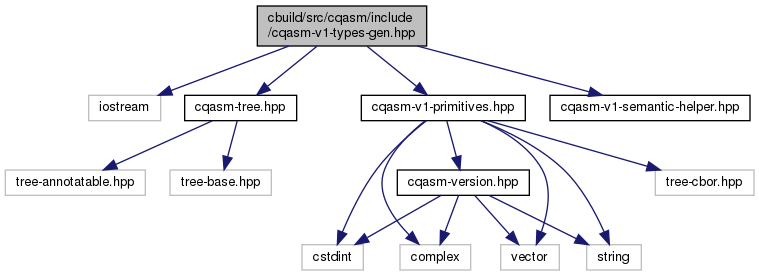

Include dependency graph for cqasm-v1-types-gen.hpp:

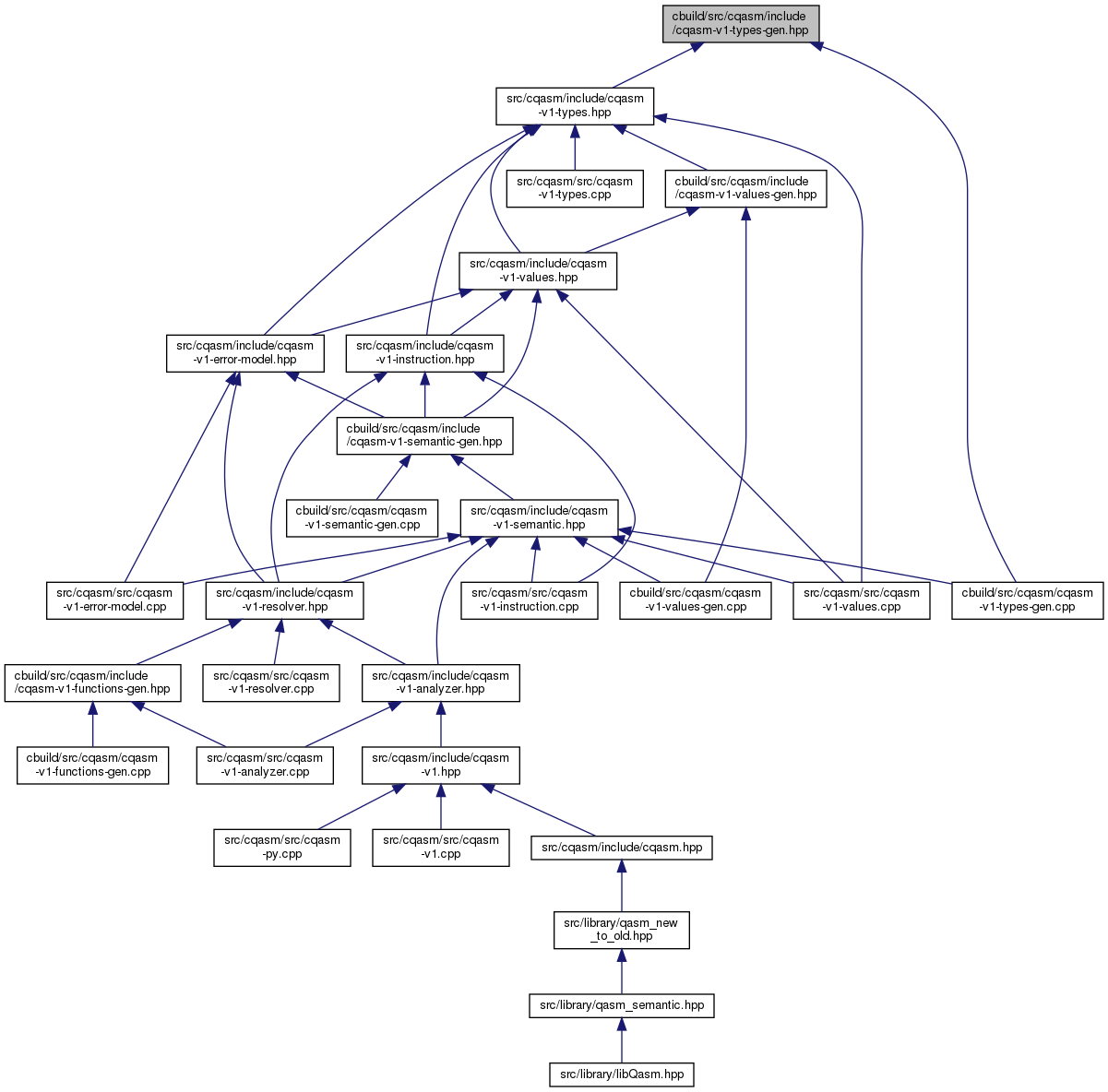

This graph shows which files directly or indirectly include this file:
